#56399 The Perrypointe

2516 Sq Ft | 4 Bed | 4+ Bath | 2 Story | 3 Garage | Width: 34′-0″ Depth: 60′-4″

Square footage Dimensions Ceiling heights Main features Architectural Styles
First Floor 1171 Width 34' 0" Main Level 9' 0" Stories 2 Contemporary
Second Floor 1345 Depth 60' 4"> Second Level 8' 0" Bedrooms 4
Total Heated 2516 Height 31' 9" Bathrooms 4+
Garage 766 Garage Spaces 3
Unfinished Space 806
Square footage
First Floor 1171
Second Floor 1345
Total Heated 2516
Garage 766
Unfinished Space 806
Dimensions
Width 34' 0"
Depth 60' 4">
Height 31' 9"
Ceiling heights
Main Level 9' 0"
Second Level 8' 0"
Main features
Stories 2
Bedrooms 4
Bathrooms 4+
Garage Spaces 3
Architectural Styles
Contemporary

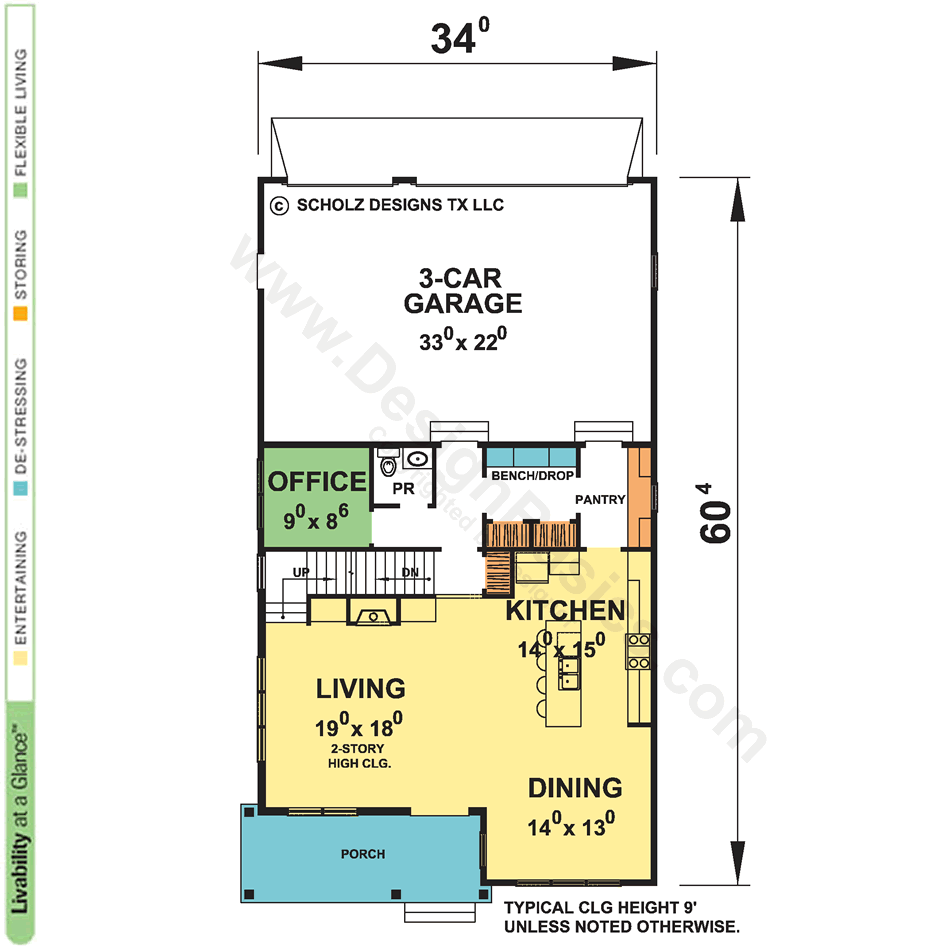

Main Level

Main Level Options

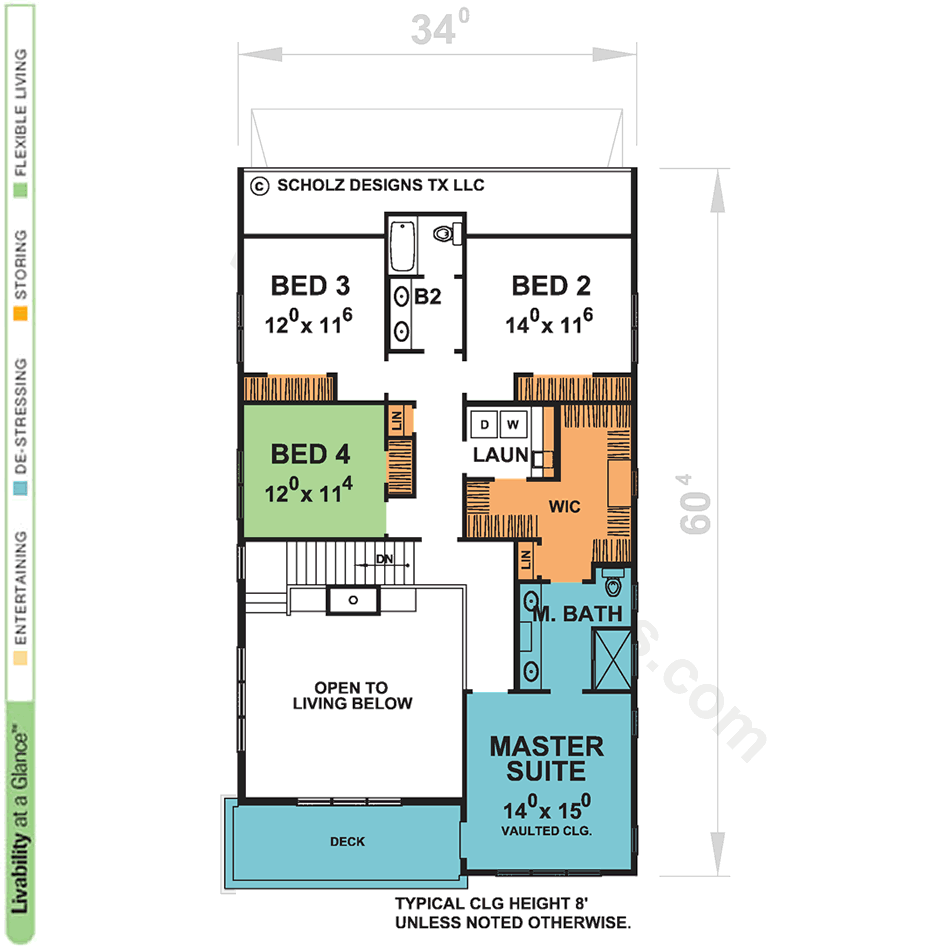

Upper Level

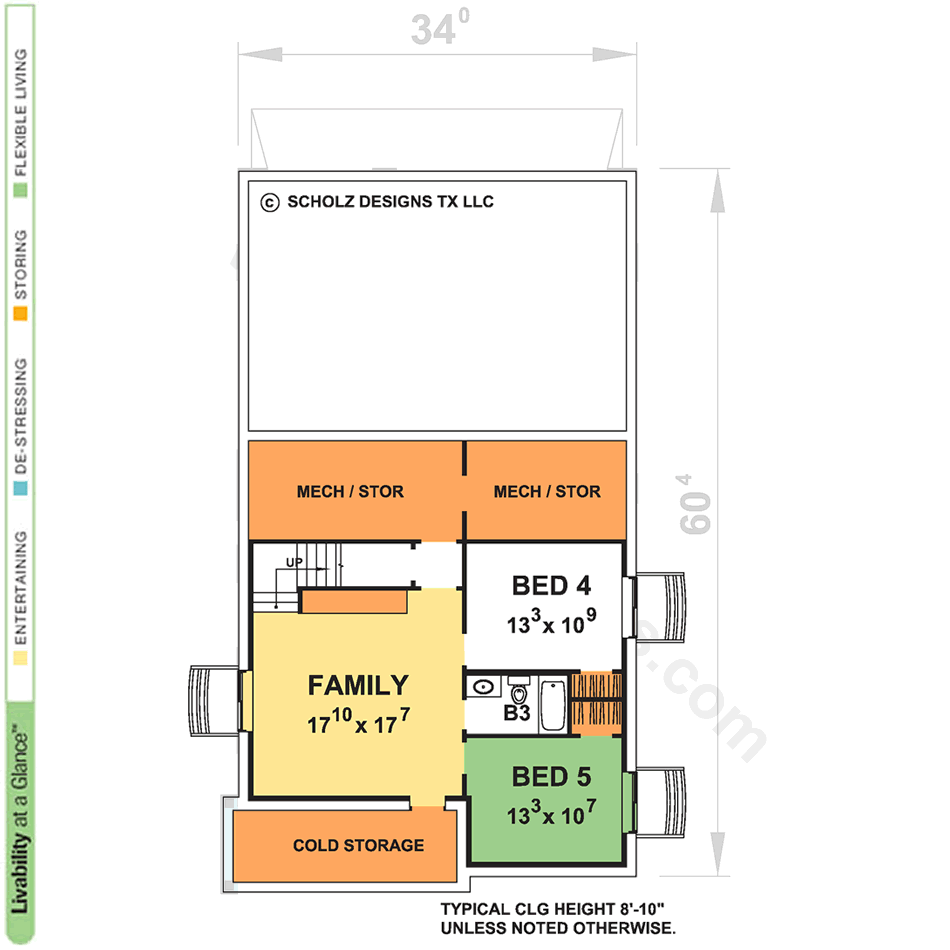

Lower Level

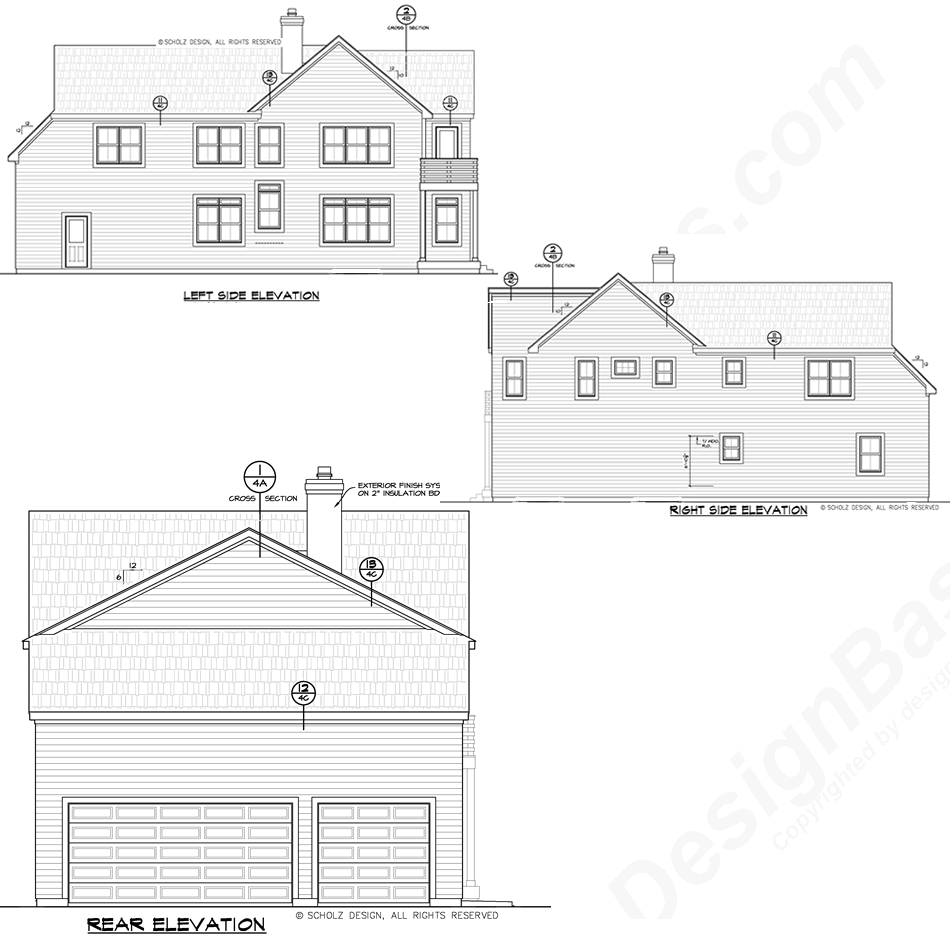

Rear Elevation



Plan Description

The “Architect’s Collection” is an evolving library of Scholz home designs each with complete, up-to-date construction documents created under the direct supervision of our chief architect, creator of all Scholz Design homes for the past 3 decades. This value packed collection is proven. How? These designs have been sold, some built, some currently under construction and others are preparing to be built. And a tremendous value because each has a highly detailed, recently completed set of construction documents that are ready to ship within 24 hours. All construction drawings in this collection meet current building codes, (although local requirements and restrictions such as wind loads, seismic conditions, height limits or floor area ratios, (F.A.R.) may supersede). Full structural information for design criteria used in this collection is included on the drawings, and beam calculations are available if needed. Of course, as with all Scholz Designs homes, your desired modifications and alternate elevations can be accomplished, for further discussion or more information regarding the “Architect’s Collection” or any other Scholz Designs home please call us.

What's Included?

When you purchase a plan, you receive a Construction License that gives you certain rights in building the home depicted in that plan. Click here for more information.

CONSTRUCTION DRAWINGS (most plans)

Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.

Foundations. Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet average conditions and building codes in Nebraska (Texas for Carmichael & Dame Designs) at the time they are designed. Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Livability Index

Entertaining
De-Stressing
Storing
Flexible
Entertaining
De-Stressing
Storing
Flexible

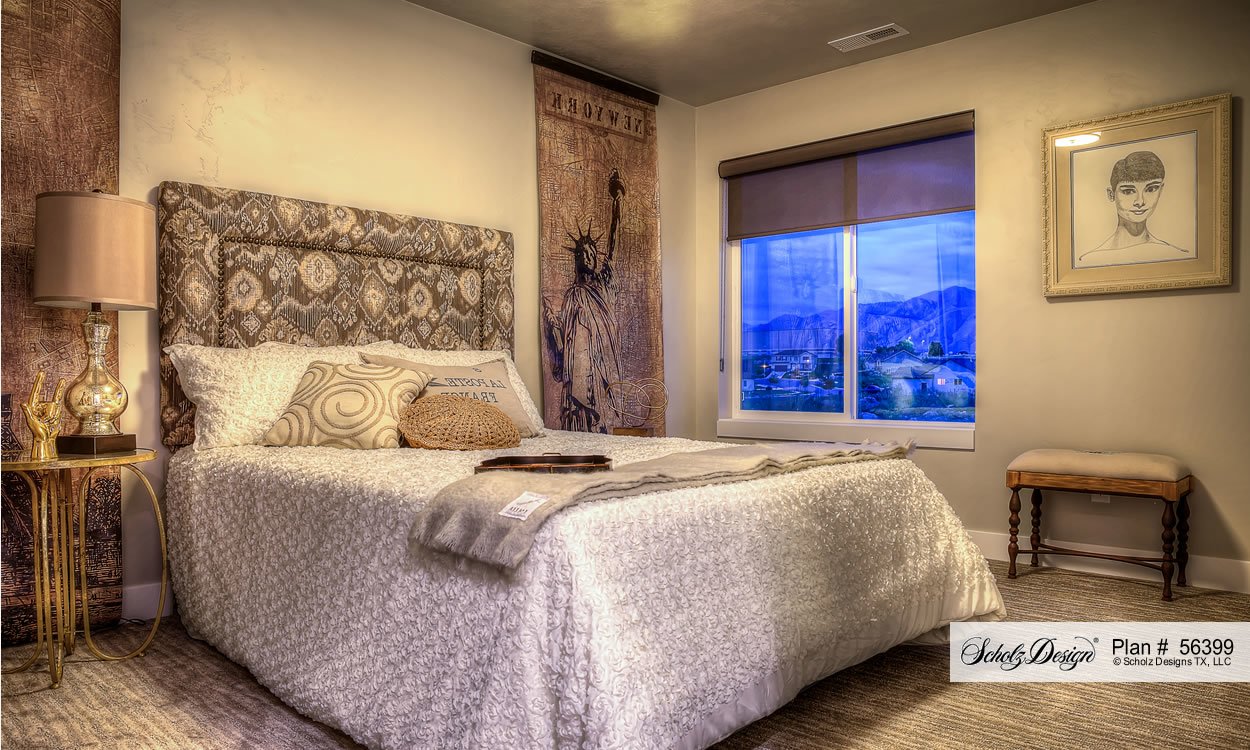

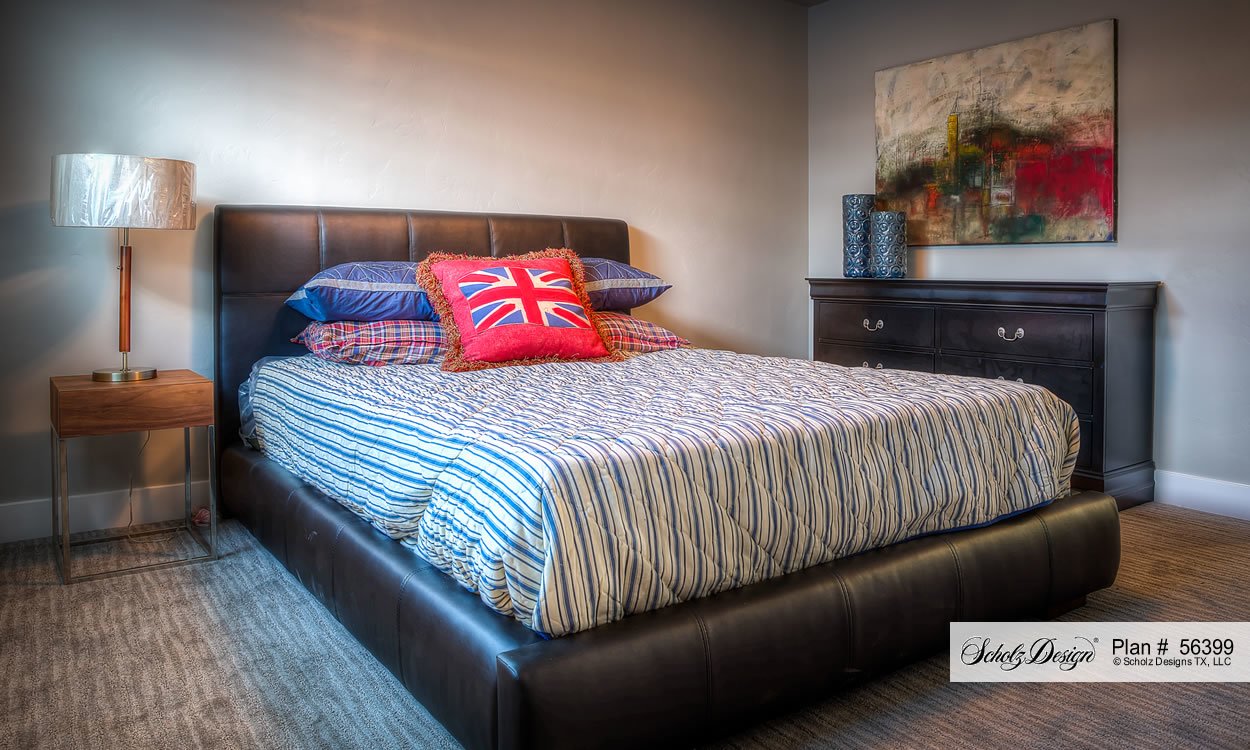

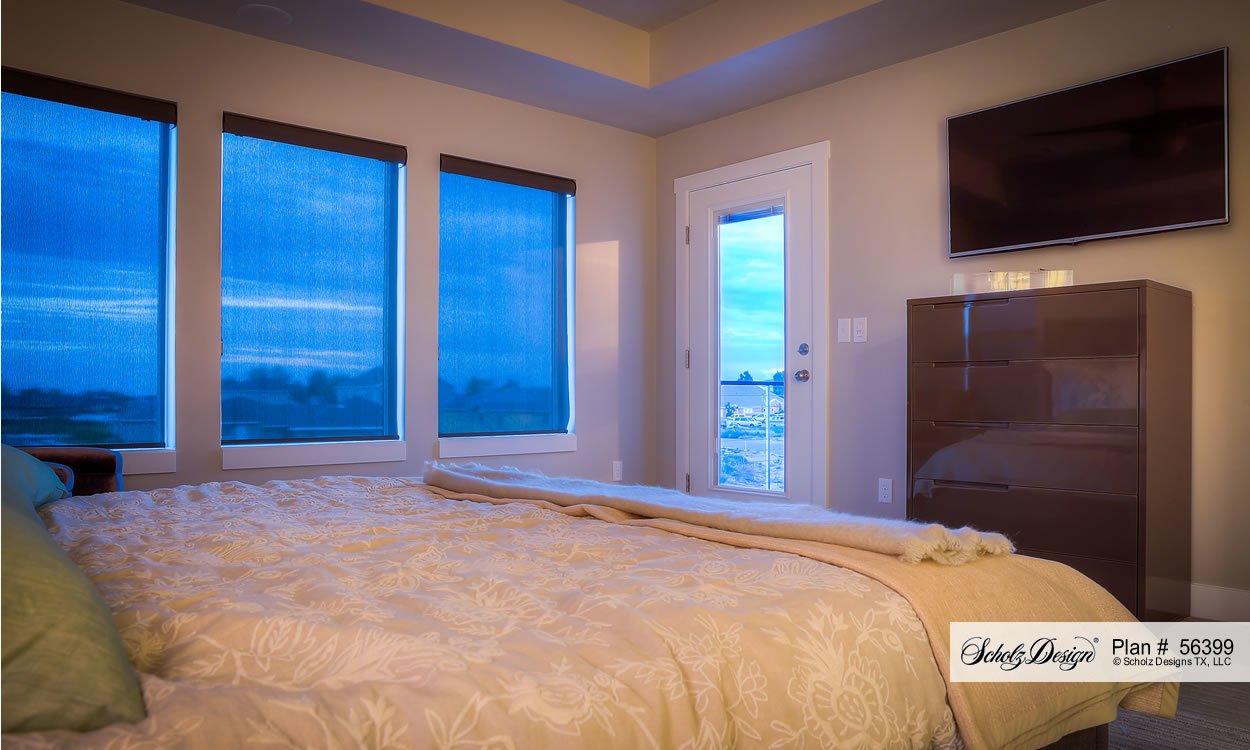

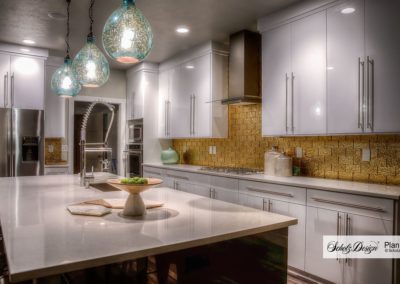

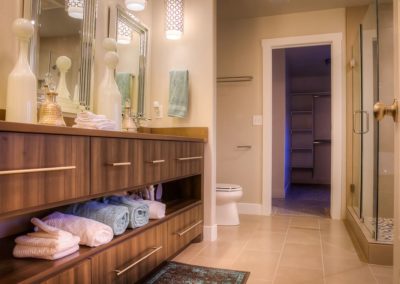

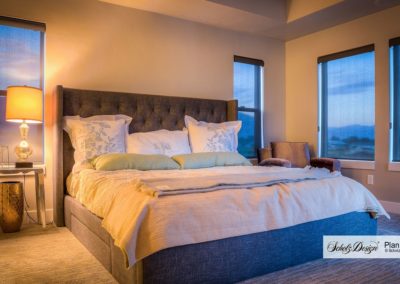

Home Tour
